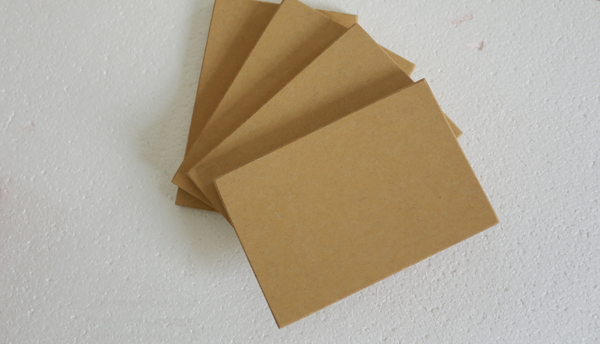

Product Name: Thaichan Fireproof Board (100% Non-Asbestos)
Product Introduction


While no practical building material is truly fireproof, well-constructed houses and buildings can help prevent such tragedies by using materials that are relatively fire-resistant. Consequently, it's not a question of whether a fire can damage a structure, but a question of when. It simply takes longer for fire to affect fire-resistant materials.


As one of Professional passive fire protection system painstakingly developed by Olar, Thaichan Fireproof Board can meet the requirements of A1 incombustibility which the time of fire resistance can be up to 4 hours with supportive structures.


-100% Non-Asbestos


-Thermal insulation


-Up to Grade A1 In-combustibility


-Professional at Fire Resistant


-No radiation or pollution when it is on fire


-Can wrap the damper, ducting, column, bean with high fire rating application purpose


-Easy Installation




-Anti-fungus, insect


-Durable, Long Lifespan




      9mm: for Fire Rated Ceiling;


      12,15mm: for Fire Rated Partition;


      1525mm: for high Fire Rating purpose application. For example, Fire Resistant Ducting, Beam, Column and Damper Wrapping, etc.

Technical Data

Standard Specification: 1220*2440*9/12/15~25mm


Tolerance: Length/Width: ±/3mm; Thickness: ±/0.3mm;

Edge Squareness: ≤4mm/m;  Diagonal difference: ≤4mm

Surface: Normal (Unsanded)


Edge: Square


Density: 950~1150kg/m3


Bending Strength:  Cross: 6~8MPa; Parallel: 4~6MPa


Moisture Movement: ≤ 0.25%


Water Absorption: ≤42%


Moisture Content: ≤ 12% (Under EMS condition)


Thermal Conductivity: ≤ 0.22w/ (m·k)


Non-combustibility: GB 8624-2006 Grade A1


Excellent Characteristics: Incombustibility, High Bending Strength, Thermal Insulation, Professional on high Fire Resistant, Sound Insulation, Shock Resistance, Durability, Long service life, etc.


Products Warranty: More than 20 years.
